GREASE SYSTEM DRAGLINE

Truck-mounted dragline grease system engineered for large-scale mining equipment lubrication.

Usage

  • Delivery
  • Storage
  • Transportation

Capacities

  • 600L
  • 750L

Features and Benefits

Maximum Storage

Minimal Product Contamination

Field Proven Design

Applications

Grease

Ink

Pastes

Standard Equipment

  • Containment for light viscosity greases
  • 2 x 3” Flanges, Ball Valves optional

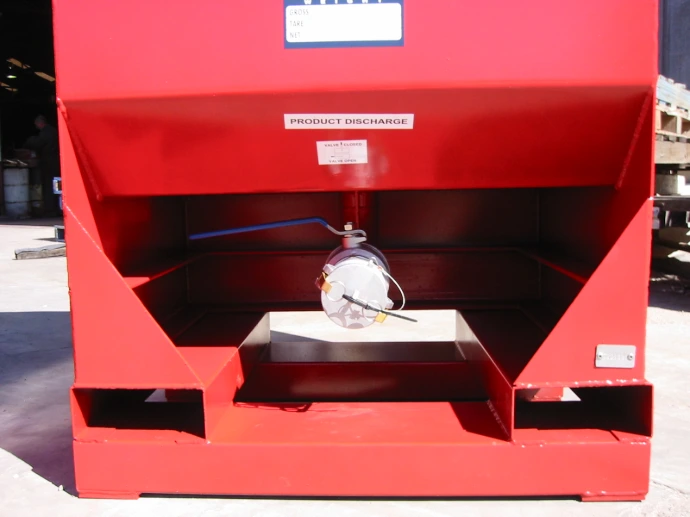

  • Bottom 3” Discharge Hinged Manway
  • Bottom Lift: Four-Way Forklift Entry
  • Top Lift: 2 or 4 Lifting Lugs (depending on model)
  • Corner Protection Rails

Options Equipment & Services

  • Pumping equipment
  • Pump manifold adapters
  • Pump spear adapters
  • Stainless steel hinged lids
  • Grease pumps
  • Grease delivery meters
  • Hose reels
  • Dispensing stands
  • Bulk grease delivery trays
  • Grease supply manifolds
  • Electronic switching

Technical Specifications

Table 1: Dimensions, Capacities & Weights

Product Code Volume (L) Length (mm) Width (mm) Height (mm) Weight (kg)
GRED600 600 774 750 1713 302
GRED750 750 1035 1229 1306 467

Table 2: Material & Build Specifications

Component Specification / Material
Main Assembly Material Mild Steel
Camlocks Aluminium (316 Stainless Steel optional)
Valves General purpose brass (316 Stainless Steel optional)
Gaskets Manway EPDM
Fill & Discharge Points 3” Camlock Adapters
Venting System 20 mm Free Vent
Surface Protection Painted to 150 microns minimum
