GREASE PRESSURISED FOLLOWER 20000 FCL

Usage

  • Delivery
  • Storage
  • Transportation

Capacities

  • 20,000 litres (2 x 10,000 litres)

Features and Benefits

Bulk Storage and Transportation

Minimal Residual

Reduced Contamination

Field Proven Design

Applications

Grease

Ink

Adhesives

Pastes

Standard Equipment

  • 2 of GREPF10000 internal tanks secured in a side opening 20 FT shipping container
  • Each inner unit is equipped with:
  • Fill / Discharge Point: 80mm ball valve
  • Coupling: 80mm camlock adapter and cap
  • Level Indicator: Sight gauge with E,1/4, 1/2, 3/4, F level increments
  • Vents: Pressure 35 kPa, Vacuum -3.5kPa
  • Air Line Fitting: 10mm BSP (F) socket
  • Bottom Lift: Two-way forklift entry
  • Remote air line
  • Air regulator and gauge
  • Aluminium equipment information panel
  • All external surfaces grit blasted primed and top coated

Options Equipment & Services

  • Pump spear adapter
  • Grease supply manifolds
  • Electronic switching
  • Corporate colours
  • GPS position tracking management
  • Remote volume management, pressure pallet or ultrasonic

Frequently Asked Questions

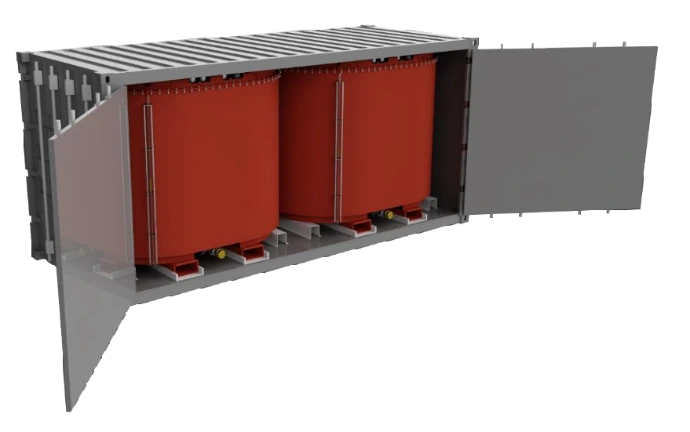

The Grease Pressurised Follower 20000FCL is a 20,000-liter bulk transport, storage, and dispensing system. It integrates two "GREPF10,000" series circular pressurized follower grease tanks inside a standard 20 ft side-opening shipping container to safely handle bulk viscous materials across supply chains.

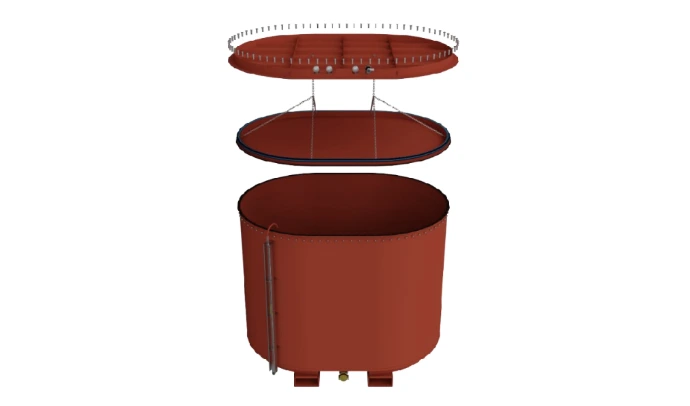

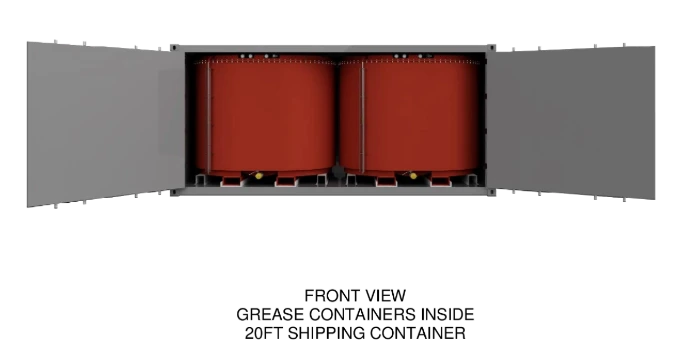

The twin internal grease tanks are accessible via the shipping container's side doors. They sit on an integrated channel mount system that acts as guide rails, allowing the tanks to be easily rolled or removed out of the 20 ft container for routine maintenance and servicing.

While standard units are built for rugged industrial use, Optitainer offers flexibility in choice including custom designs and material options in Mild Steel and Stainless Steel. Additional upgrades include GPS tracking, remote volume monitoring (ultrasonic or pressure pallet), grease supply manifolds, and custom corporate paint finishes.

The system is specifically engineered for high-viscosity materials, including NLGI#3 grease and lower grades. Additionally, its high purge rate design makes it fully adaptable for storing and dispensing other thick industrial materials such as adhesives, pastes, and industrial inks.

Need Help Finding the Right Solution?

Share your requirements or specs with our team for a tailored solution

Speak to an expert            Download Product Brochure
